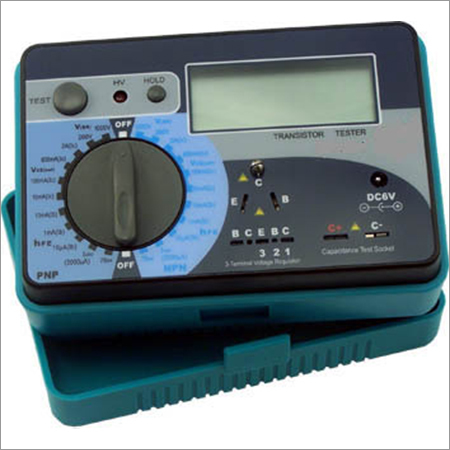

Transister Tester

Transister Tester
Transister Tester
Product Code : Model: TT-45
Brand Name : MEXTECH
Product Description

Features :

  • Measure rich DC parameters of manifold semiconductors, e.g. diode, transistor, controlled silicon, FET.
  • Measure capacitor, varistor, DC voltage signal source
  • Measure 78 and 79 three terminal voltage regulator
  • Data hold, low battery warning
  • Complete with carry case and six 1.5V AA batteries

Specifications

Function

Range

Display Scope

Resolution

Operation Condition

V(BR)

1000V

0-1999V

1V

breakdown current < 1mA

200V

0-199.9V

0.1V

breakdown current < 1mA

VCC(Set)

2A(Ic)

0-6.00V

0.01V

Ic=2000mA Ib=200mA

800mA(Ic)

0-6.00V

0.01V

Ic=800mA Ib=80mA

100mA(Ic)

0-6.00V

0.01V

Ic=100mA Ib=1mA

10mA(Ic)

0-6.00V

0.01V

Ic=10mA Ib=1mA

hFE

10mA(Ib)

0-199.9

0.1

Ib=10mA

1mA(Ib)

0-1999

1

Ib=1mA

1µA(Ib)

0-1999

1

Ib=0.01mA

ICEO

2000µA

0-1999µA

1µA

Vce =27V

78,79 three-pole constant voltage value

78xx/79xx

0-24.0V

0.1V

Ui =27V

 General Characteristics :

Power

AA 1.5V*6(UM3)

Product size

150x100x70mm

Product Net Weight

680g

Standard Accessories

Leather Case

Standard individual packing

gift box
